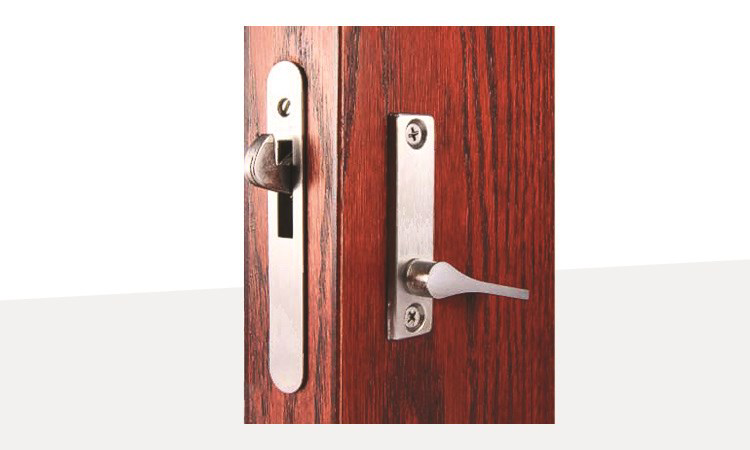

For wood framed sliding doors, the 5500 Deadlock features the 5017 Deadlock/Latch which provides the same 1000 lbs strength that the MS1847 Deadlock/Latch provides for metal stiles. The bolt throw is easily adjusted by means of a screw in the faceplate. Mounting is by through-bolts, which also secure the inside 1004 Turn Lever and outside 1016 Blank Plate escutcheon. The package incorporates the 1004 Turn Lever an oversized thumbturn operator on the interior, coupled with the 1016 Blank plate escutcheon with an emergency override access location on the exterior.
45° rotation of 1004 Turn Lever projects or retracts bolt. Bolt is self-protecting: if door is shut while bolt is extended, it will retract, preventing damage or accidental lock-out.
Cylinder Backset: 1-3/16" [30.2 mm]; 1-1/4" [31.8 mm] including faceplate.
Case: Measures 1/2" x 4" x 1-19/32" deep [12.7 mm x 101.6 mm x 40.5 mm deep]. Stainless steel.
Bolt: Three-ply laminated stainless steel.
Door Thickness: 1" to 1-1/4" [25.4 mm to 31.8 mm] thick doors.
Faceplate: Measures 5/8" x 4-1/2" [15.9 mm x 114.3 mm] with radiused ends. Stainless steel.
Strike: 4810 Box Strike for wood.
Inside: 1004 Turn lever is zinc alloy with stainless steel escutcheon for interior activation of lock. Spindle is hardened steel, plated for corrosion resistance.
Outside: 1016 Blank plate escutcheon with emergency override access location on exterior of door.
Available in choice of finish US26D (626) Satin chrome, or powder coat 119 Black to match 335 Black anodized.
